The MC200 will be supplied with a single default program. The default being Mon-Fri, 8:00am-5:00pm at 20°C
Program Settings
The MC200 has 14 programs, each of which can be assigned to any day of the week. Each program can be given an ON time, an OFF time and a set temperature.
MC200 will have a default program set at 08:00-17:00, Monday to Friday at 20°C. The user may organise the programs in any way that suits. The simplest would be one program ON in the morning, OFF at the end of the afternoon, active Monday to Friday.
If two or more programs are active at the same time, for instance one is ON all day and another is ON between 11:00 and 13:00, then the set temperature of the second program will apply between 11:00 and 13:00, and the set temperature of the first program will apply during the rest of the working day.
NOTE: Do not overlap any multiple programs as this will cause an error.
Important: No timer can be programmed to run past midnight, because it is assigned to a day of the week. If timed heating is required across midnight, it must be provided by two timers, one ending at 23:59 and the other starting at 00:00. At midnight, all manual over-rides and extensions are cleared.
Procedure

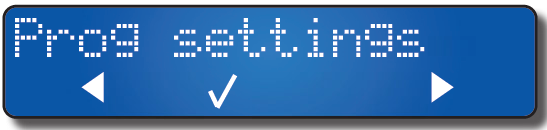

• From the Home Screen, press the ► FOUR times until
“Prog settings” appears. (if already password protected you may need to enter your 4 digit number).
• Press the
button to set/alter program.
• Press the
button to alter Prog No. 1 or the + or - button to select specific program number then press the
button to accept. ‘HEAT ON at .....’ will appear
• Press the + or - button to alter/set the HEAT ON hour.
• Press the ► button to move to the HEAT ON minutes
• Press the + or - button to alter/set the HEAT ON minutes
• Press the ► button to move to the HEAT OFF hour
• Press the + or - button to alter/set the HEAT OFF hour
• Press the ► button to move to the HEAT OFF minutes
• Press the + or - button to alter/set the HEAT OFF minutes
• Press the ► button to move to the Temperature
• Press the + or - button to change the Temperature.
• Press the ► button to move to the Programmed days
• Press the + or - button to alter between: Mon-Fri; SatSun; 7 days; Off or individual days.
• Press the ► button and ‘Save Prog 1?’ will appear.
• Press the
button to save changes, ‘Setting Saved’ will briefly appear, or press the X button to exit without saving.
• For an additional program use the + button to go to Prog No. 2 and repeat the above procedure or press the X button to return to ‘Prog Settings’.
Don’t forget to press the button when ‘Save Prog 2?’ appears to save changes. Setting Saved’ will briefly appear.
• For an additional program use the + button to go to further programs and repeat the above procedure or press the X button to return to ‘Prog Settings’.
• Press the X button to return to the Home Screen.
